NX22-516KRS4 > DVR

본문 바로가기

DVR

NX22-516KRS4

■ 製品シリーズ : Xシリーズ


■ チャンネル : 16ch


■ 外形 : Blue


■ HDD Bay : 2個


■ Rec. performance : 2MP@Full


Video
Input16 BNC
Input Resolution4K(8MP), 5MP, 4MP, 3MP, 2MP

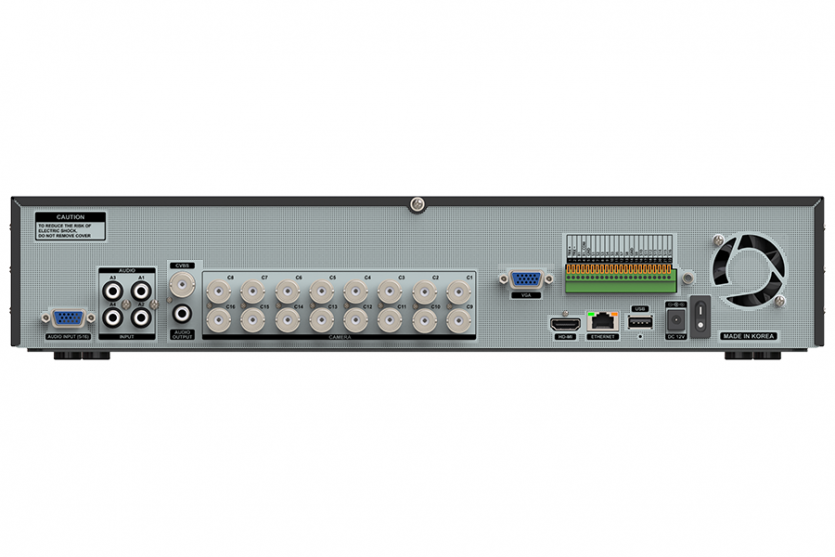

Output1 HDMI , 1 VGA , 1 D-SUB
Output ResolutionUHD, QHD, FHD, SXGA, XGA
Recording
Speed2MP : 30fps/ch
3MP, 4MP : 15fps/ch
5MP : 10fps/ch
4K(8MP) : 8fps/ch
Resolution4K(8MP), 5MP, 4MP, 3MP, 2MP, 960H
CompressionH.265, H.264
Audio
Input8 RCA + 8 D-SUB
Output1 HDMI, 1 RCA
Interface
Senser In / Out16 / 1 - NC / NO
USB2 x USB 2.0
PTZRS485 - Terminal Block
Network
InterfaceEthernet 10/100/1G
CompressionH.264, H.265
ResolutionNormal 2MP, REC Video Bypass Max. 4K
System
OSEmbedded Linux (Built-in Flash Memory)
Pre / Post-Alarm5sec / 5sec~5min
Recording ModeContinuous, Event, Schedule
Data SearchCalendar, Multi Day / Time, Event, Go to Time
Backup InterfaceUSB, Network
Backup TypeVideo(RMS, AVI), Capture(JPEG), Log List, Setup Data
Alarm ActionBuzzer, PTZ Preset, E-mail , SPOT, Relay, Event Popup, Push
User15 Users (Admin, User1 ~ User14)
Network ViewerCMS, Web Viewer, App (iOS, Android), etc
ONVIFONVIF Profile T
Storage
Primary / Enternal3 HDD bays
General
Size (W x D x H)430mm x 270mm x 86mm (WxDxH)
Temp / Humidity5 ~ 40 ℃ / 10 ~ 80%
Power Supply12V / 5A
Power
Consumption
60 Watts
