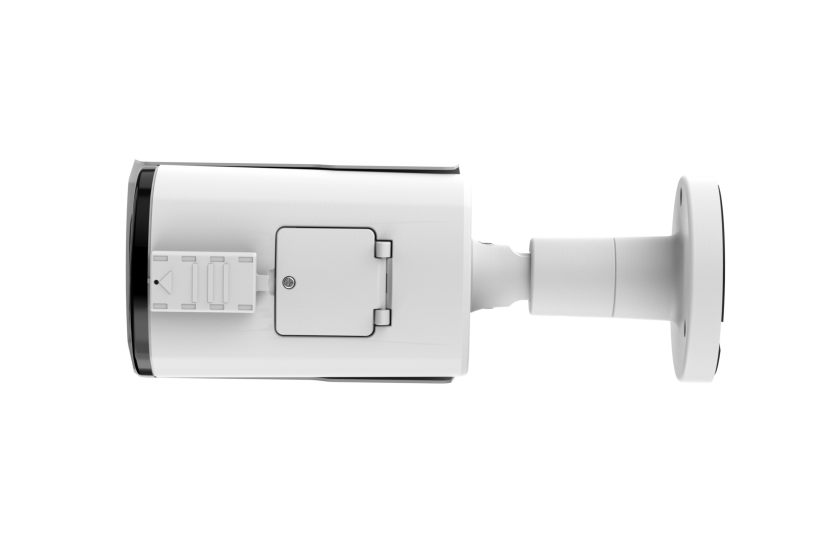

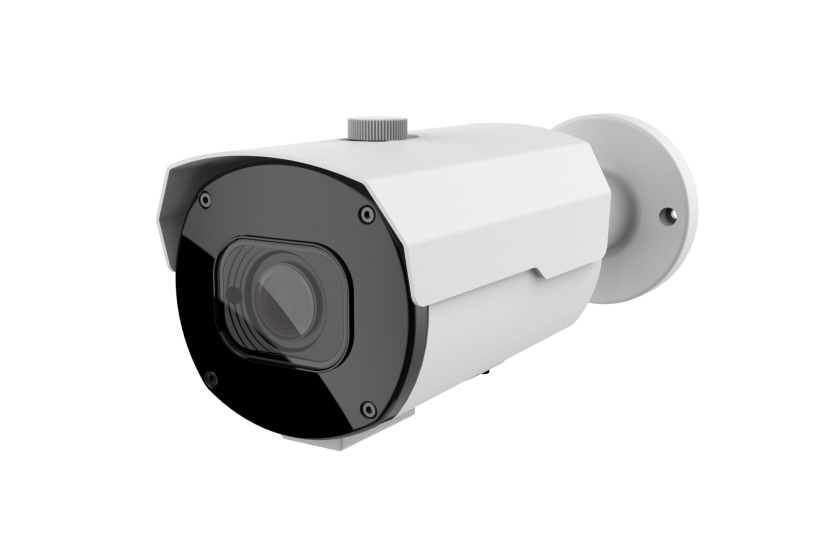

BMT2-AMD2-FS
■ 제품 시리즈 : T 시리즈
■ 카테고리 : Day&Night
■ 외관형태 : Bullet
■ 해상도 : 2MP
■ 렌즈형태 : Fixed
| Camera | ||
| Image Sensor | 1/2.8" Progressice Scan CMOS | |
| Effective Pixels | 2MP (1920 x 1080) | |
| Min. Illumination | 0.002Lux@F1.6(AGC ON), B/W 0 Lux IR on | |
| Electronic Shutter | Auto | |
| Lens | ||
| Type / Focal Length | Motorized / 2.8-12mm | |
| Filed of View(FOV) | H:110.6-32.6° / V:57.3-18.3° / D:134.1-37.4° | |
| Aperture | F1.8-3.3 | |
| Illuminator | ||
| Light Type | IR | |
| Range(IR/WARM) | Up to 35m | |
| Video & Event | ||
| Max. Framerate | AHD/TVI/CVI: PAL@25fps, NTSC@30fps CVBS: 960H |
|
| Day/Night | Ext / Color / B/W | |
| White Balance | ATW | |
| Image Enhancement | WDR/120dB, 3D DNR | |
| UTC | ACP (AHD Coax Protocol) | |
| General | ||
| Power Supply | DC 12V | |
| Power Consumption | IR OFF ≤1W，IR ON ≤4W | |
| Operating Temp. | -35 °C to 55 °C | |
| Ingress Protection / IK code | IP66 | |
BMT2-AMD2-FS 2MP, TWDR.pdf (223.9K)
