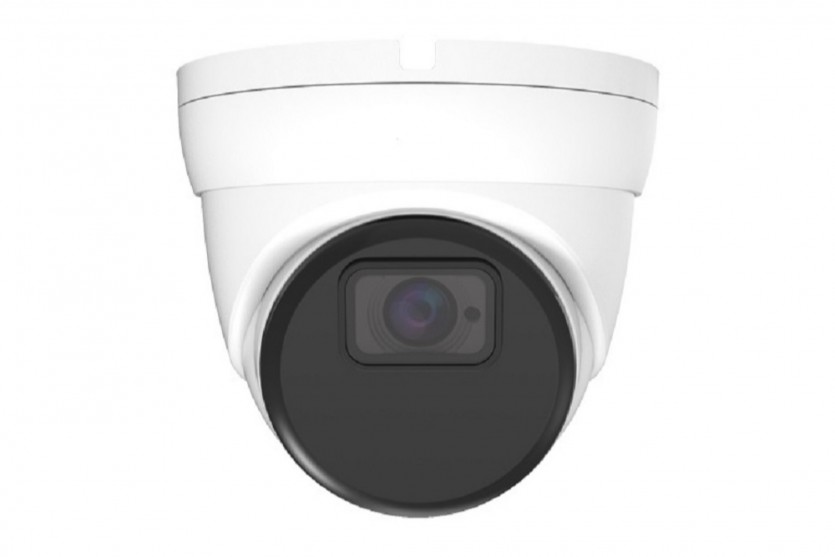

TET3-AFD5-TM
■ 제품 시리즈 : T 시리즈
■ 카테고리 : Day&Night
■ 외관형태 : Turret
■ 해상도 : 5MP
■ 렌즈형태 : Fixed
| Camera | ||
| Image Sensor | 1/2.7" Progressice Scan CMOS | |
| Effective Pixels | 5MP (2592 × 1944) | |
| Min. Illumination | 0.04Lux@F1.6(AGC ON), B/W 0 Lux IR on | |
| Electronic Shutter | Auto | |
| Lens | ||
| Type / Focal Length | Fixed / 2.8mm | |
| Filed of View(FOV) | H:111.4° / V:58.8° / D:134° | |
| Aperture | F1.6 | |
| Illuminator | ||
| Light Type | IR | |
| Range(IR/WARM) | Up to 20m | |
| Video & Event | ||
| Max. Framerate | 5MP: AHD/TVI: 5MP@20fps 4MP: AHD/CVI/TVI: P@25fps N@30fps 2MP: AHD/CVI/TVI: P@25fps N@30fps CVBS: 960H |
|
| Day/Night | Ext / Color / B/W | |
| White Balance | ATW | |
| Image Enhancement | 2D DNR | |
| Audio | Audio Over Coaxial / 7M | |
| General | ||
| UTC | ACP (AHD Coax Protocol) | |
| Power Supply | DC 12V | |
| Power Consumption | IR OFF ≤1W，IR ON ≤4W | |
| Operating Temp. | -30 °C to 55 °C | |
| Ingress Protection / IK code | IP66 | |
TET3-AFD5-TM 5MP, DN.pdf (222.8K)
