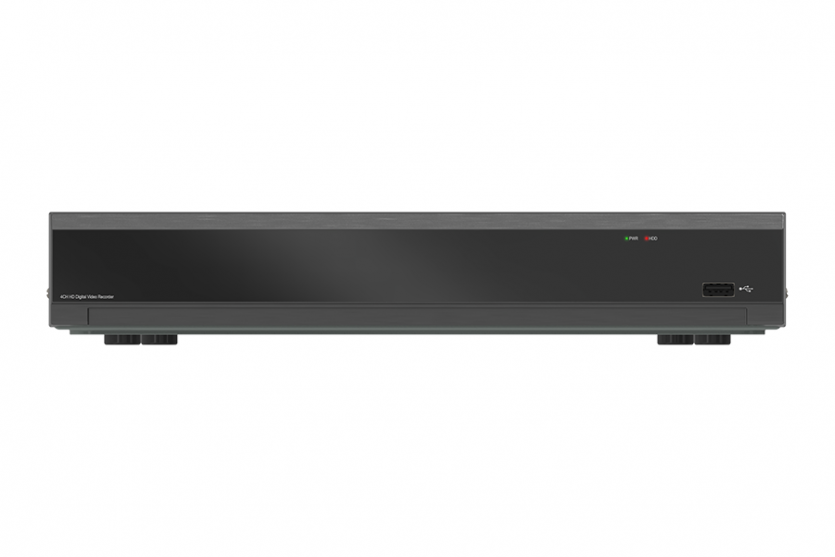

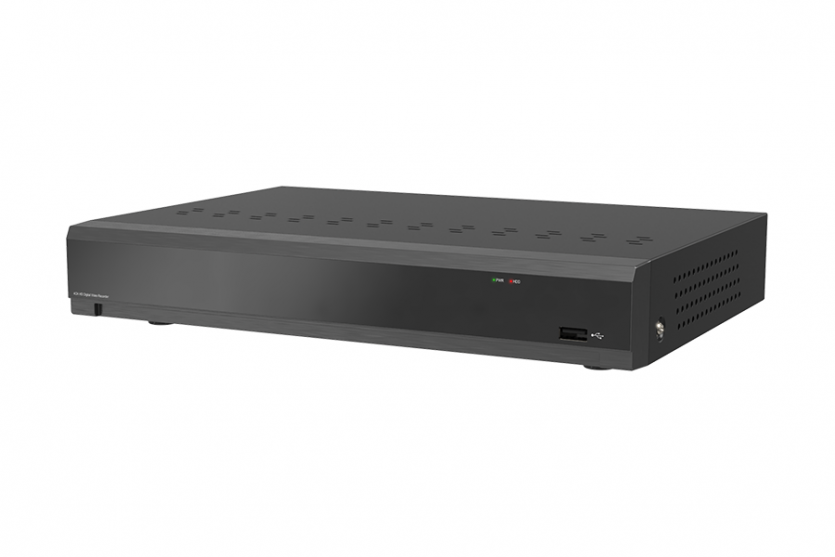

ET21-0404S-323A

■ 製品シリーズ : Tシリーズ


■ チャンネル : 4ch


■ 外形 : Kute


■ PoE(NVR) : 4PoE


■ HDD Bay : 1個


Video
Input4 IP
Input ResolutionMax, 4K
Output1 HDMI / 1VGA
Output ResolutionMax. 4K
Recording
Speed7.5fps/ch (4K), 30fps/ch (2MP)
ResolutionMax. 4K
CompressionH.265, H.264. JPEG
Audio
Input1CH
Output1CH
Interface
Senser In / Out4 IN / 1 OUT
USB2 Port(Front 1, Rear 1)
PTZRS485 - Terminal Block
Network
Interface1 x Ethernet 10/100/1G
CompressionH.264
Speed7.5fps(4MP)
ResolutionMax. 4MP
System
OSEmbedded Linux 4.2  (Built-in Flash Memory)
Pre / Post-Alarm5sec / 5sec~5min
Recording ModeContinuous, Event, Schedule
Data SearchCalendar, Multi Day / Time, Event, Go to Time
Backup InterfaceUSB, Network
Backup TypeVideo(RMS, AVI), Log List, Setup Data
Alarm ActionBuzzer, PTZ Preset, E-mail, Event Popup, Push
User15 Users (Admin, User1 ~ User14)
Network ViewerNETUS-Pro, NETUS-Lite (Windows, Mac), NETUS-Eyes (iOS, Android)
ONVIFONVIF Profile S
Storage
Primary / Enternal1 HDD
General
Size (W x D x H)300 x 227 x 53 mm
Temp / Humidity-10℃ ~ 50 ℃ / 10% ~ 90%
PoE4 PoE, 802.3 at/af
Power Supply48V / 1.5A
Power
Consumption
57.6W

ET21-0404S-323A.pdf (320.3K)
