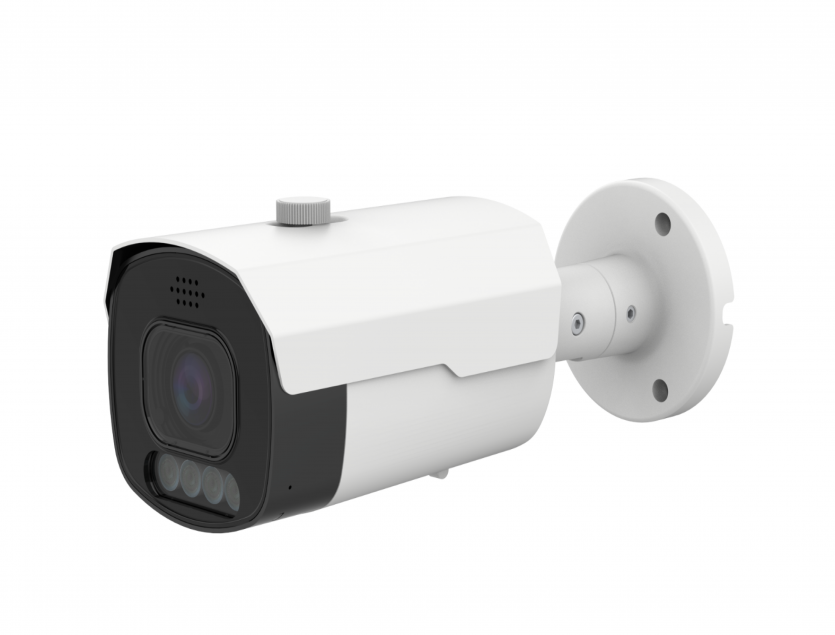

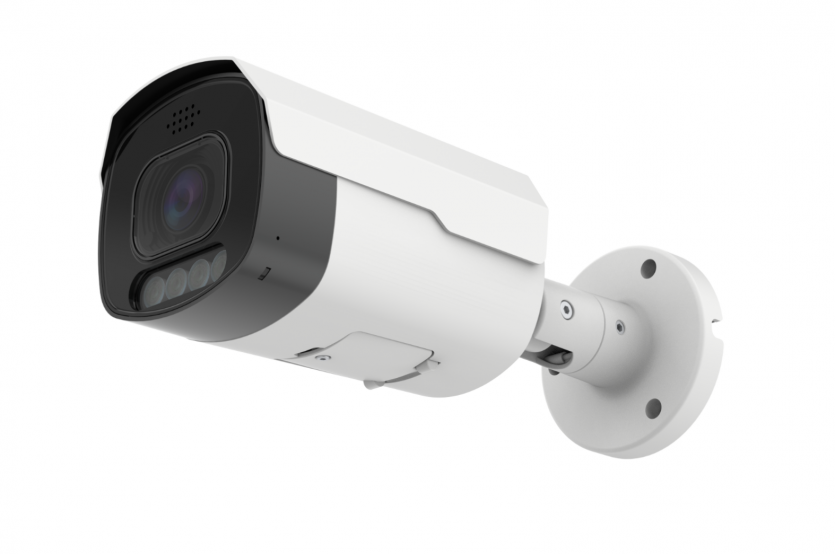

BMT2-NMF5-NM

■ 製品シリーズ : Tシリーズ


■ カテゴリ : Full Color


■ 外観形態 : Bullet


■ 解像度 : 5MP


■ レンズ形態 : Motorized

Camera
Image Sensor1/2.7" Progressice Scan CMOS
Effective Pixels5MP (2880 x 1620)
Min. Illumination0.002Lux@F1.0(AGC ON), B/W 0 Lux IR on
Shutter Speed1/5s to 1/20,000s
Lens
Type / Focal LengthMotorized / 2.8 ~ 12mm
Filed of View(FOV)H: 113° to 35°, V: 59° to 20°, D: 138° to 41°
ApertureF1.0
Illuminator
Light TypeIR / Warm Light / Red&Blue Light
Range(IR/WARM)IR - Up to 30m / Warm Light - Up to 25m
Video
1st stream30fps (2880x1620, 2560x1440, 2304x1296, 1920x1080, 1280x720)
2nd stream30fps (1280x720, 640x480, 320x240)
3rd stream30fps (640x480, 320x240)
Compression H.265 / H.264
Video Quality Ajustment256Kbps to 8Mbps
Bitrate ControlCBR / VBR
Audio
Sampling Rate8k
CompressionG.711ulaw / G.711alaw
Bitrate64kbps
Network
APIONVIF (Profile S, G, T)
ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
SecurityIP address filter; complicated password; Authenticated username and password
Day & NightFull Color Mode / Day&Night Mode / Schedule
WDRTWDR
Image Enhancement3D DNR
Image SettingsSaturation, brightness, contrast, sharpness, white balance
Interface
Ethernet1-RJ45, 10M / 100Mbps
On-Board StorageMicro SD, up to 256 GB
Smart & Event
Smart featuresFace Detection(FD) Human&Vehicle Detection(PD&VD) Perimeter Intrusion Detection(PID)
Line Crossing Detection(LCD) Cross Counting(CC)Stationary Object Detection(SOD)
Heat Map(HM)Crowd Density Detection(CD)Queue Lenght Detection(QD)
license Plate Detection(LPD)Rare Sound Detection(RSD)
EventsMulti-lines OSD, Motion Detection, Privacy Mask
General
MaterialMetal
Power DC12V
Operating Conditions-35 °C to 60 °C (-31 °F to 140 °F)
Ingress Protection / IK codeIP67
BMT2-NMF5-NM 5MP.pdf (227.3K)
