IPカメラ

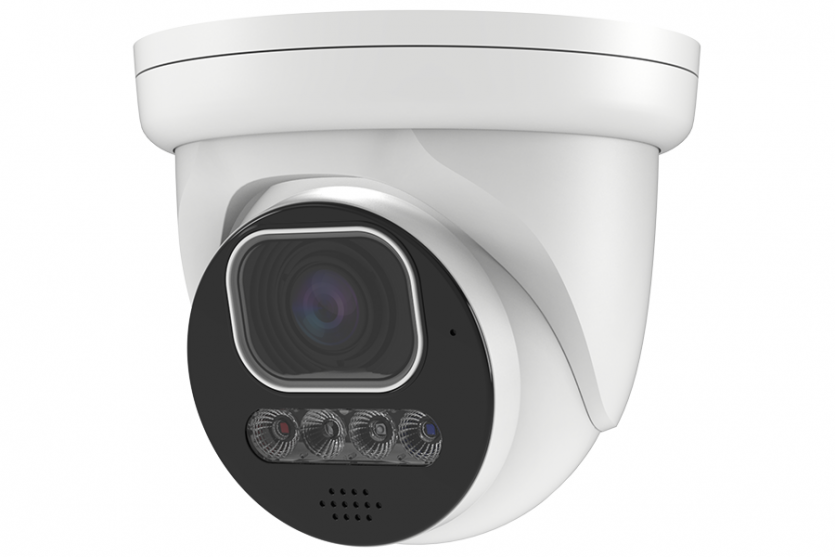

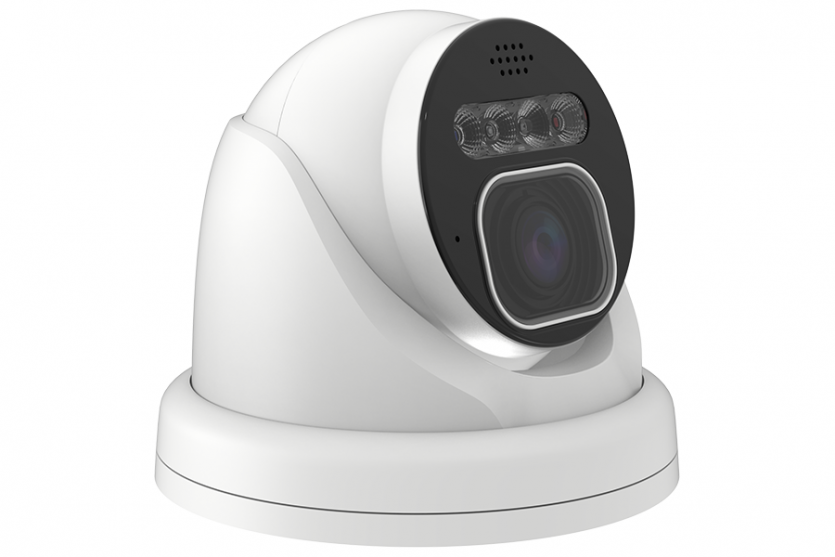

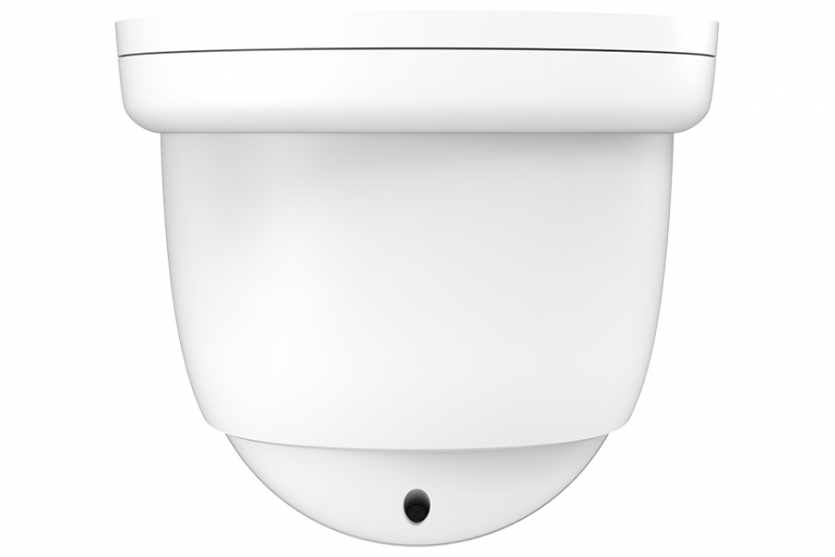

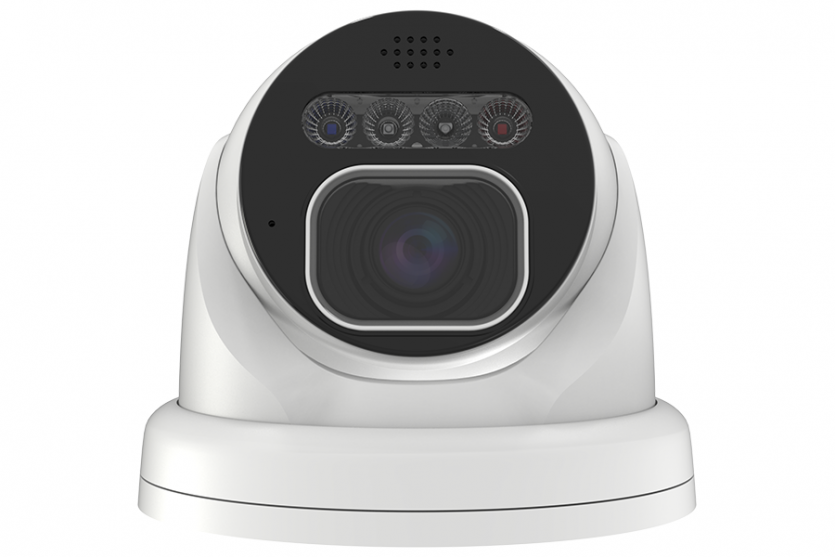

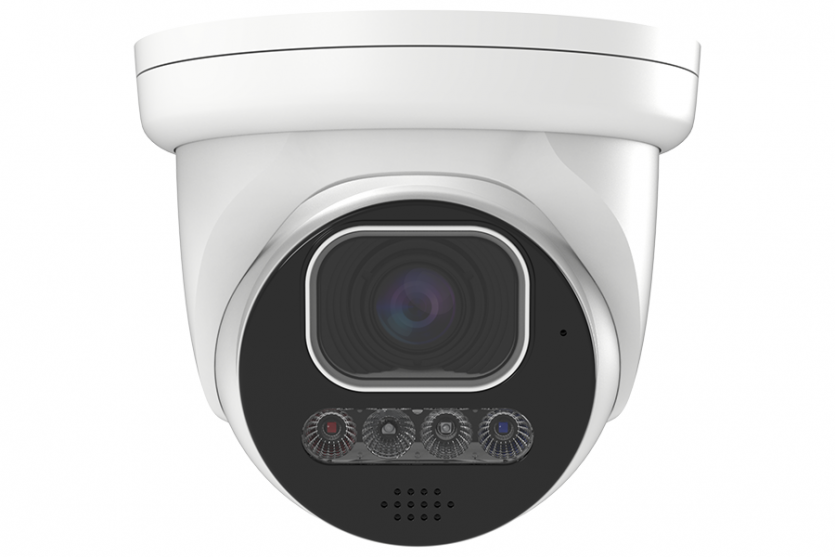

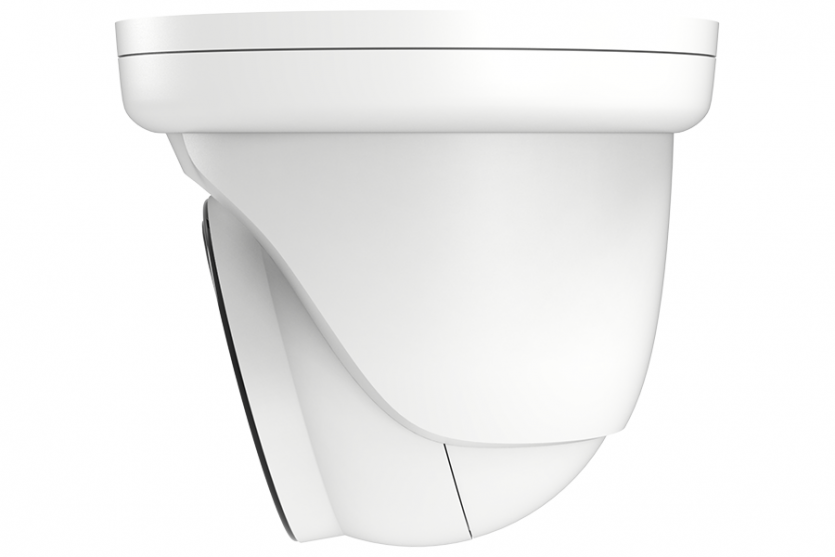

TBO1-NMU4-XO

■ 製品シリーズ : Oシリーズ


■ カテゴリ : Ultra Low Light


■ 外観形態 : Turret


■ 解像度 : 4MP


■ レンズ形態 : Motorized

Camera
Image Sensor1/1.8" Progressice Scan CMOS
Effective Pixels4MP  (2688x1520)
Min. IlluminationColor: 0.0005Lux @ (F1.0, AGC ON), B/W 0 Lux with IR on
Shutter Speed1/5s to 1/20,000s
Lens
Type / Focal LengthMotorized / 3mm -10mm
Filed of View(FOV) H: 105°(W) -56°(T), V: 54°(W) -32°(T), D: 131°(W) -65°(T)
ApertureF1.0
Illuminator
Light TypeWarm Light, Red/Blue Light
Range(IR/WARM)None / Up to 30m
Video
1st stream4MP(2688x1520), 3MP(2304x1296), 1080P(1920x1080)
2nd stream1080P(1920x1080), 720P(1280x720), VGA(640x480)
3rd streamVGA(640x480), QVGA(320x240)
Compression H.265 / H.264
Video Quality AjustmentFull Color Mode / Day&Night Mode / Schedule
Bitrate ControlVBR / CBR
Audio
Sampling Rate8k
CompressionG.711ulaw / G.711alaw
Bitrate64kbps
Network
APIONVIF (Profile S, G, T)
ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
SecurityIP address filter;  complicated password;  Authenticated username and password
Day & NightYes
WDRYes
Image Enhancement3D DNR, White Balance
Image SettingsFull Color Mode
Interface
EthernetRJ45 (10/100BASE-T)
On-Board StorageMicro SD slot, up to 256GB
Smart & Event
Smart featuresFace Recognition, Pedestrian & Vehicle , Perimeter Intrusion , Line Crossing ,  Object Detection,
Crossing Counting, Heat Map, Crowd Density , Queue Length , License Plate ,Rare Sound,
Intrusion,Region Entrance,Region Exiting
EventsOff/On (8 Level)
General
MaterialMetal
Power D12V / POE (IEEE802.3af)
Operating Conditions-35~+60°C / less than  90% RH
Ingress Protection / IK codeIP67
TBO1-NMU4-XO 4MP_Ultra Low Light_사양서.pdf (333.6K)
