アナログカメラ

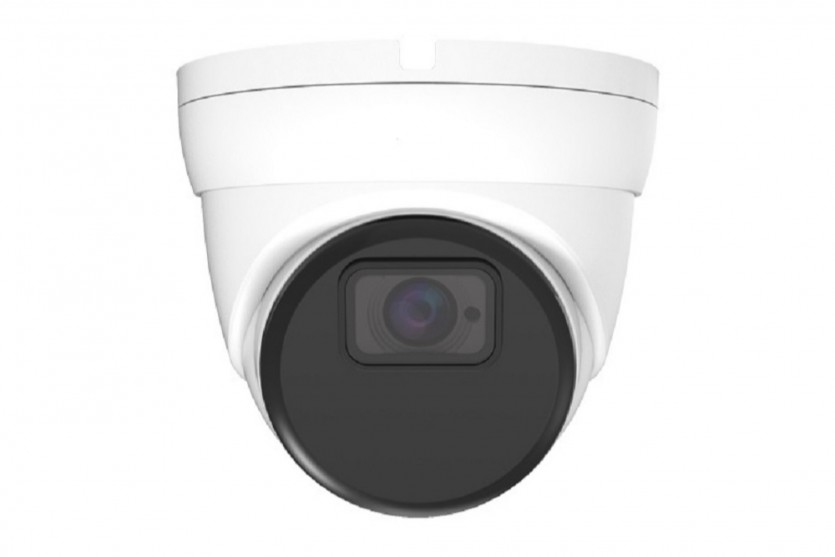

TET2-AFD8-FM

■ 製品シリーズ : Tシリーズ


■ カテゴリ : Day&Night


■ 外観形態 : Turret


■ 解像度 : 8MP


■ レンズ形態 : Fixed

Camera
Image Sensor1/2.7" Progressice Scan CMOS
Effective Pixels8MP (3840 × 2160)
Min. Illumination0.06Lux@F1.6(AGC ON), B/W 0 Lux IR on
Electronic ShutterAuto
Lens
Type / Focal LengthFixed / 2.8mm
Filed of View(FOV)H:106.9°  /  V:56.9°  /  D:127.9°
ApertureF1.6
Illuminator
Light TypeIR
Range(IR/WARM)Up to 30m
Video & Event
Max. FramerateAHD/TVI/CVI: 8MP@15fps,
TVI/CVI:8MP@12.5fps,
CVBS: 960H
Day/Night Ext / Color / B/W
White BalanceATW
Image EnhancementWDR/120dB, 3D DNR
UTCACP (AHD Coax Protocol)
General
Power SupplyDC 12V
Power Consumption IR OFF ≤2W,IR ON ≤4W
Operating Temp.-35 °C to 55 °C
Ingress Protection / IK codeIP66
TET2-AFD8-FM 8MP.pdf (252.7K)
