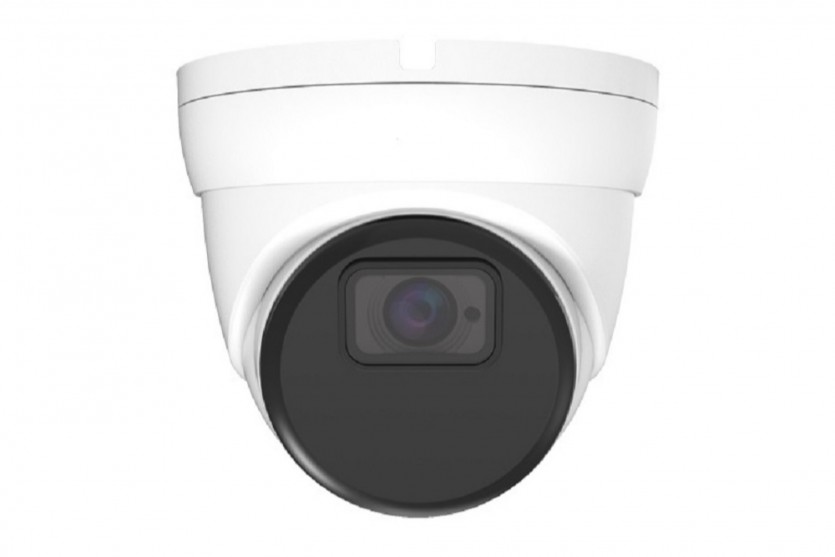

TET2-AFD5-FS
■ 製品シリーズ : Tシリーズ
■ カテゴリ : Day&Night
■ 外観形態 : Turret
■ 解像度 : 5MP
■ レンズ形態 : Fixed
| Camera | ||
| Image Sensor | 1/2.8" Progressice Scan CMOS | |
| Effective Pixels | 5MP (2592 × 1944) | |
| Min. Illumination | 0.02Lux@F1.6(AGC ON), B/W 0 Lux IR on | |
| Electronic Shutter | Auto | |
| Lens | ||
| Type / Focal Length | Fixed / 2.8mm | |
| Filed of View(FOV) | H:106.9° / V:56.9° / D:127.9° | |
| Aperture | F1.6 | |
| Illuminator | ||
| Light Type | IR | |
| Range(IR/WARM) | Up to 30m | |
| Video & Event | ||
| Max. Framerate | 5MP: AHD/TVI: 5MP@20fps 4MP: AHD/CVI/TVI: P@25fps N@30fps 2MP: AHD/CVI/TVI: P@25fps N@30fps CVBS: 960H | |
| Day/Night | Ext / Color / B/W | |
| White Balance | ATW | |
| Image Enhancement | WDR/120dB, 3D DNR | |
| UTC | ACP (AHD Coax Protocol) | |
| General | ||
| Power Supply | DC 12V | |
| Power Consumption | IR OFF ≤1W，IR ON ≤4W | |
| Operating Temp. | -35 °C to 55 °C | |
| Ingress Protection / IK code | IP66 | |
TET2-AFD5-FS 5MP.pdf (223.2K)
