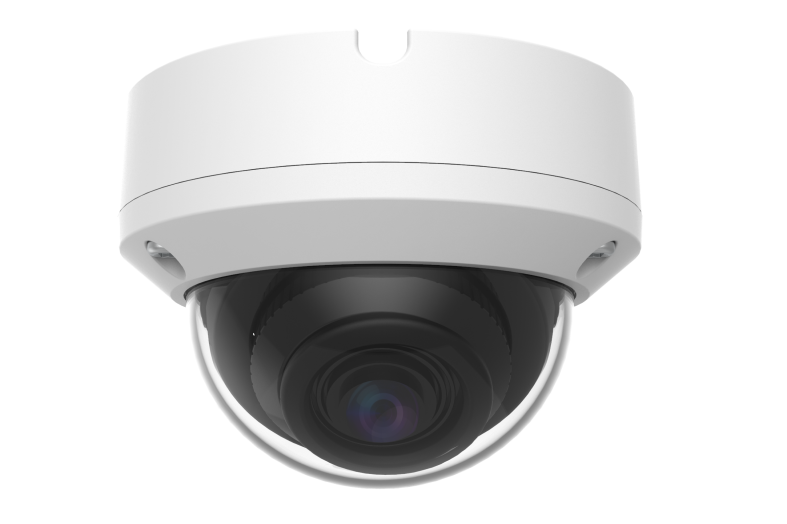

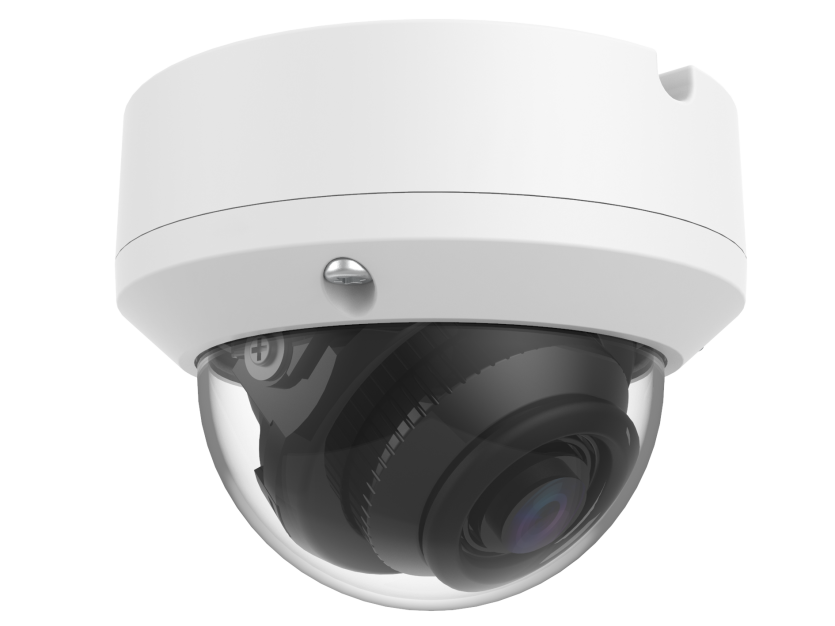

VMT2-AFD5-TM

■ 製品シリーズ : Tシリーズ


■ カテゴリ : Day&Night


■ 外観形態 : Dome


■ 解像度 : 5MP


■ レンズ形態 : Fixed

Camera
Image Sensor1/2.7" Progressice Scan CMOS
Effective Pixels5MP (2592 × 1944)
Min. Illumination0.04Lux@F1.6(AGC ON), B/W 0 Lux IR on
Electronic ShutterAuto
Lens
Type / Focal LengthFixed / 2.8mm
Filed of View(FOV)H:111.4°  /  V:58.8°  /  D:134°
ApertureF1.6
Illuminator
Light TypeIR
Range(IR/WARM)Up to 20m
Video & Event
Max. Framerate5MP: AHD/TVI: 5MP@20fps
4MP: AHD/CVI/TVI: P@25fps N@30fps
2MP: AHD/CVI/TVI: P@25fps N@30fps
CVBS: 960H
Day/Night Ext / Color / B/W
White BalanceATW
Image Enhancement2D DNR
AudioN/A
General
UTCACP (AHD Coax Protocol)
Power SupplyDC 12V
Power Consumption IR OFF ≤1W,IR ON ≤4W
Operating Temp.-30 °C to 55 °C
Ingress Protection / IK codeIP66/ / IK10
VMT2-AFD5-TM 5MP, DN.pdf (225.5K)
