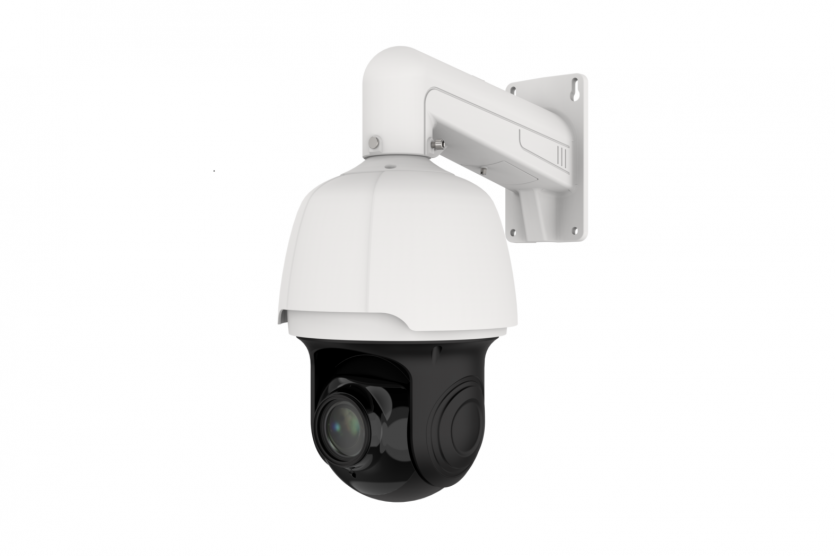

PUT2-NSD2-NS
■ Series : T Series
■ Category : Special Camera
■ Appearance : -
■ Resolution : 2MP
■ Lens Type : Fixed
| Camera | ||
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Max. Resolution | 1920x1080 | |
| Min. Illumination | Color: 0.002 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR | |
| Shutter Speed | 1/5 s to 1/20000 s | |
| Slow Shutter | Yes | |
| Day & Night | IR cut filter | |
| Zoom | 25x optical | |
| Lens | ||
| Focal Length | 5.0 mm to 125 mm | |
| FOV | Horizontal field of view: 55° to 2.3° (wide-tele), Vertical field of view: 41.6° to 1.7° (wide-tele), Diagonal field of view:67.9° to 2.8° (wide-tele) | |
| Aperture | Max. F1.5 | |
| Focus | Auto,manual | |
| Illuminator | ||
| Supplement Light Range | IR Distance: up to 150 m | |
| Supplement Light Type | IR | |
| PTZ | ||
| Movement Range(Pan) | 360° | |
| Movement Range(Tilt) | -10° to 90° (auto flip) | |
| Pan Speed | Pan speed: configurable from 0.6° to 200°/s; preset speed: 200°/s | |
| Tilt Speed | Tilt speed: configurable from 0.6° to 90°/s, preset speed 100°/s | |
| Presets | 255 | |
| Patrol Scan | 1 Scan | |
| Pattern Scan | 4 pattern | |
| Video | ||
| Main Stream | 50 Hz: 25fps(2592x1944/2592x1520/2048x1536/2304x1296/1920x1080/1280x960/1280x720) 60 Hz: 30 fps(2592x1944/2592x1520/2048x1536/2304x1296/1920x1080/1280x960/1280x720) | |
| Sub-Stream | 50 Hz: 25 fps (1280x720/640x480/320x240) 60 Hz: 30 fps (1280x720/640x480/320x240) | |
| Third Stream | 50 Hz: 25 fps (640x480/320x240) 60 Hz: 30 fps (640x480/320x240) | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG Third stream: H.265+/H.265/H.264+/H.264 | |
| Image | ||
| Day/Night Switch | Day, Night, Auto, Schedule | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Wide Dynamic Range (WDR) | 120 dB | |
| Event | ||
| Basic Event | Motion detection, alarm input and output | |
| Deep Learning Function | Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection | |
| Smart Tracking | auto-tracking | |
PUT2-NSD2-NS PTZ.pdf (414.2K)
