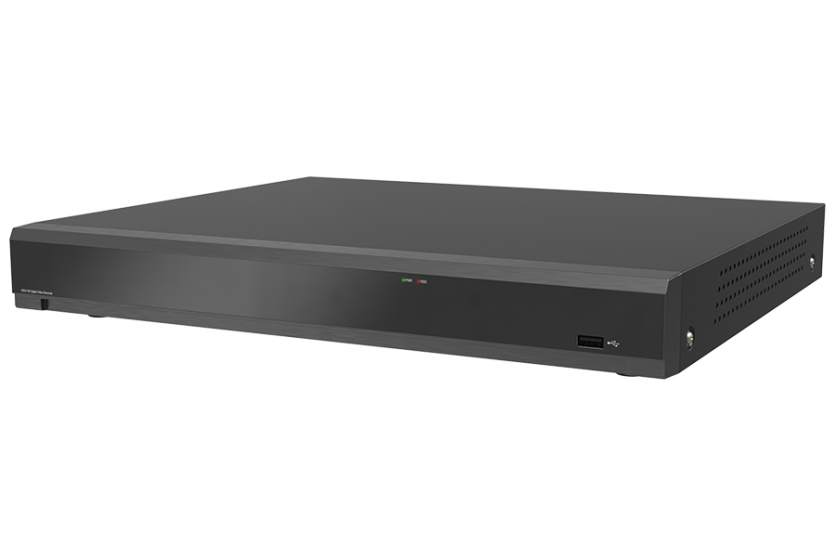

MT22-516S4-336A
■ Series : T Series
■ Channel : 16ch
■ Case : Lite
■ HDD Bay : 2Bays
■ Rec. performance : 2MP@Half
| Video | |
| Input | 16 BNC |
| Input Resolution | 8MP, 5MP, 4MP, 3MP, 2MP, 960H |
| Output | 1 HDMI, 1 VGA, 1 CVBS |
| Output Resolution | 4K, FHD, SXGA |
| Recording | |
| Speed | 2MP
: 30fps/ch 3MP, 4MP : 15fps/ch 5MP: 10fps 8MP: 7fps |
| Resolution | 8MP, 5MP, 4MP, 3MP, 2MP, 960H |
| Compression | H.265, H.264 |
| Audio | |
| Input | 8 RCA |
| Output | 1 HDMI, 1 RCA |
| Interface | |
| Senser In / Out | 16 / 1 - NC / NO |
| USB | 2 x USB 2.0 |
| PTZ | RS485 - Terminal Block |
| Network | |
| Interface | Ethernet 10/100/1G |
| Compression | H.265, H.264 |
| Resolution | Max. 4MP |
| System | |
| OS | Embedded Linux (Built-in Flash Memory) |
| Pre / Post-Alarm | 5sec / 5sec~5min |
| Recording Mode | Continuous, Event, Schedule |
| Data Search | Smart, Panorama, Calendar, Multi Day / Time, Event, Go to Time |
| Backup Interface | USB, Network |
| Backup Type | Video(RMS, AVI), Capture(JPEG), Log List, Setup Data |
| Alarm Action | Buzzer, PTZ Preset, E-mail, Relay, Spot, Event Popup, Callback, Push |
| User | 15 Users (Admin, User1 ~ User14) |
| Network Viewer | Netus, VMS, Web Viewer, Mac Viewer, NETUS-Eyes(iOS, Android) |
| ONVIF | ONVIF Profile T |
| Storage | |
| Primary / Enternal | 2 HDD |
| General | |
| Size (W x D x H) | 378 x 50 x 340 mm |
| Temp / Humidity | 5 ~ 40 ℃ / 10 ~ 80% |
| Power Supply | 12V / 5A |
| Power Consumption |
60 Watts |
MT22-516S4-336A_사양서.pdf (306.4K)
