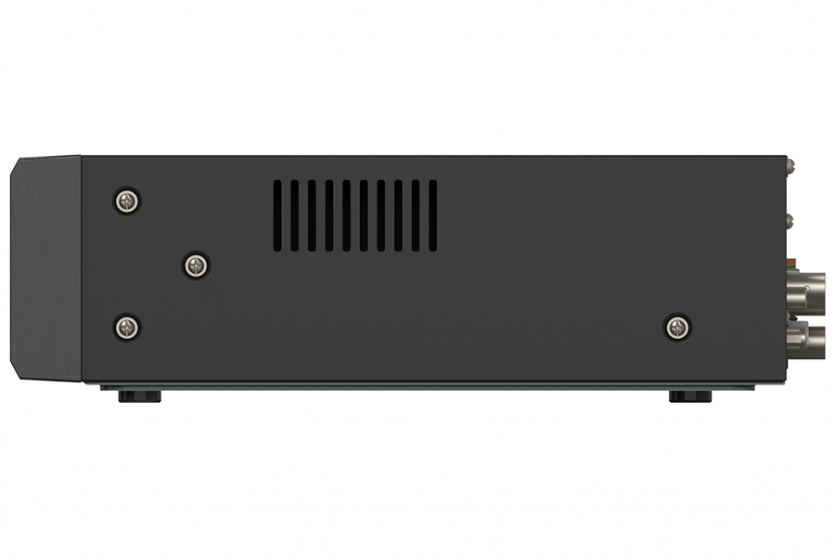

NX22-516KRS4
■ Series : X Series
■ Channel : 16ch
■ Case : Blue
■ HDD Bay : 2Bays
■ Rec. performance : 2MP@Full
| Video | |
| Input | 16 BNC |
| Input Resolution | 4K(8MP), 5MP, 4MP, 3MP, 2MP |
| Output | 1 HDMI , 1 VGA , 1 D-SUB |
| Output Resolution | UHD, QHD, FHD, SXGA, XGA |
| Recording | |
| Speed | 2MP
: 30fps/ch 3MP, 4MP : 15fps/ch 5MP : 10fps/ch 4K(8MP) : 8fps/ch |
| Resolution | 4K(8MP), 5MP, 4MP, 3MP, 2MP, 960H |
| Compression | H.265, H.264 |
| Audio | |
| Input | 8 RCA + 8 D-SUB |
| Output | 1 HDMI, 1 RCA |
| Interface | |
| Senser In / Out | 16 / 1 - NC / NO |
| USB | 2 x USB 2.0 |
| PTZ | RS485 - Terminal Block |
| Network | |
| Interface | Ethernet 10/100/1G |
| Compression | H.264, H.265 |
| Resolution | Normal 2MP, REC Video Bypass Max. 4K |
| System | |
| OS | Embedded Linux (Built-in Flash Memory) |
| Pre / Post-Alarm | 5sec / 5sec~5min |
| Recording Mode | Continuous, Event, Schedule |
| Data Search | Calendar, Multi Day / Time, Event, Go to Time |
| Backup Interface | USB, Network |
| Backup Type | Video(RMS, AVI), Capture(JPEG), Log List, Setup Data |
| Alarm Action | Buzzer, PTZ Preset, E-mail , SPOT, Relay, Event Popup, Push |
| User | 15 Users (Admin, User1 ~ User14) |
| Network Viewer | CMS, Web Viewer, App (iOS, Android), etc |
| ONVIF | ONVIF Profile T |
| Storage | |
| Primary / Enternal | 3 HDD bays |
| General | |
| Size (W x D x H) | 430mm x 270mm x 86mm (WxDxH) |
| Temp / Humidity | 5 ~ 40 ℃ / 10 ~ 80% |
| Power Supply | 12V / 5A |
| Power Consumption |
60 Watts |
