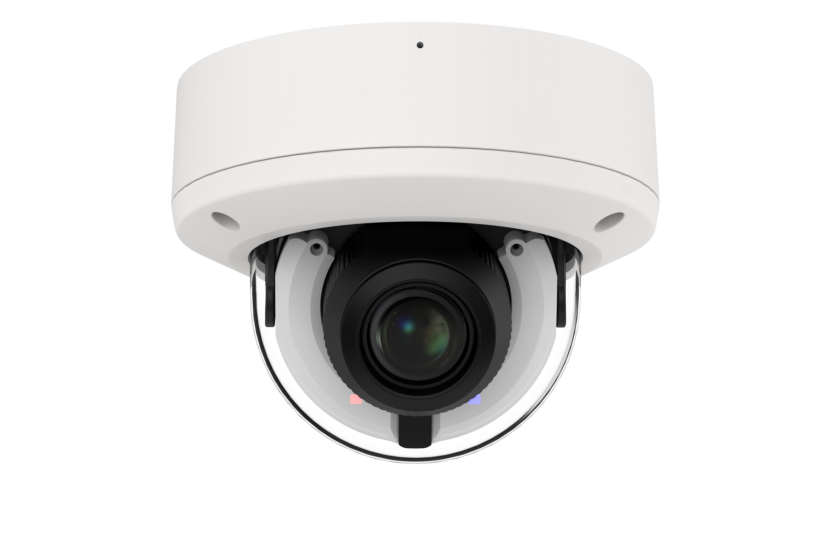

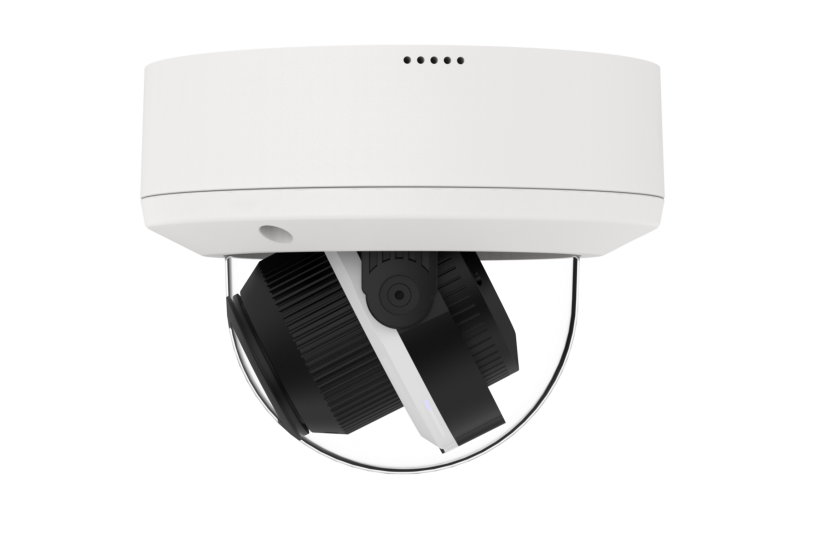

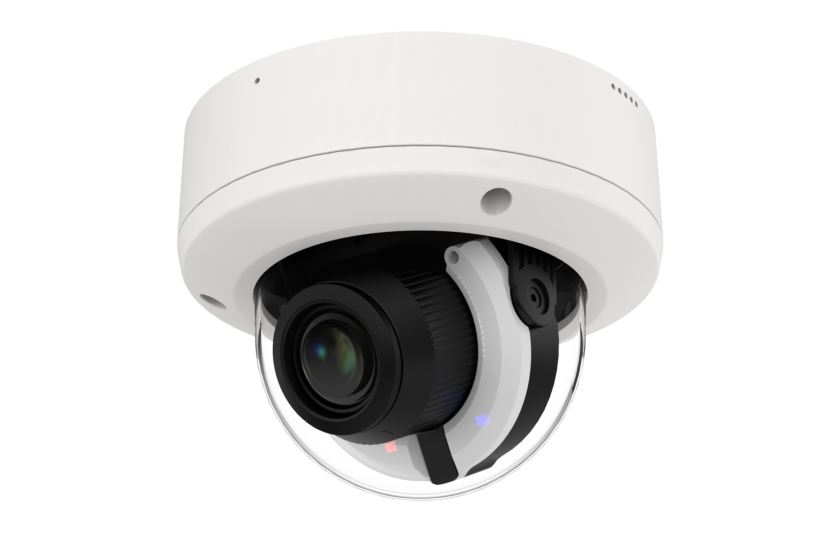

VHT2-NMF5-NM
■ 제품 시리즈 : T 시리즈
■ 카테고리 : Full Color
■ 외관형태 : Dome
■ 해상도 : 5MP
■ 렌즈형태 : Motorized
| Camera | ||
| Image Sensor | 1/2.7" Progressice Scan CMOS | |
| Effective Pixels | 5MP (2880 x 1620) | |
| Min. Illumination | 0.002Lux@F1.0(AGC ON), B/W 0 Lux IR on | |
| Shutter Speed | 1/5s to 1/20,000s | |
| Lens | ||
| Type / Focal Length | Motorized / 2.8 ~ 12mm | |
| Filed of View(FOV) | H: 113° to 35°, V: 59° to 20°, D: 138° to 41° | |
| Aperture | F1.0 | |
| Illuminator | ||
| Light Type | IR / Warm Light / Red&Blue Light | |
| Range(IR/WARM) | IR - Up to 25m / Warm Light - Up to 20m | |
| Video | ||
| 1st stream | 30fps (2880x1620, 2560x1440, 2304x1296, 1920x1080, 1280x720) | |
| 2nd stream | 30fps (1280x720, 640x480, 320x240) | |
| 3rd stream | 30fps (640x480, 320x240) | |
| Compression | H.265 / H.264 | |
| Video Quality Ajustment | 256Kbps to 8Mbps | |
| Bitrate Control | CBR / VBR | |
| Audio | ||
| Sampling Rate | 8k | |
| Compression | G.711ulaw / G.711alaw | |
| Bitrate | 64kbps | |
| Network | ||
| API | ONVIF (Profile S, G, T) | |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP | |
| Security | IP address filter; complicated password; Authenticated username and password | |
| Image | ||
| Day & Night | Full Color Mode / Day&Night Mode / Schedule | |
| WDR | TWDR | |
| Image Enhancement | 3D DNR | |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance | |
| Interface | ||
| Ethernet | 1-RJ45, 10M / 100Mbps | |
| On-Board Storage | Micro SD, up to 256 GB | |
| Smart & Event | ||
| Smart features | Face Detection（FD） Human&Vehicle Detection（PD&VD）
Perimeter Intrusion Detection（PID） Line Crossing Detection（LCD） Cross Counting（CC）Stationary Object Detection（SOD） Heat Map（HM）Crowd Density Detection（CD）Queue Lenght Detection（QD） license Plate Detection（LPD）Rare Sound Detection（RSD） |
|
| Events | Multi-lines OSD, Motion Detection, Privacy Mask | |
| General | ||
| Material | Metal | |
| Power | DC12V | |
| Operating Conditions | -35 °C to 60 °C (-31 °F to 140 °F) | |
| Ingress Protection / IK code | IP67 | |
VHT2-NMF5-NM 5MP.pdf (227.1K)
