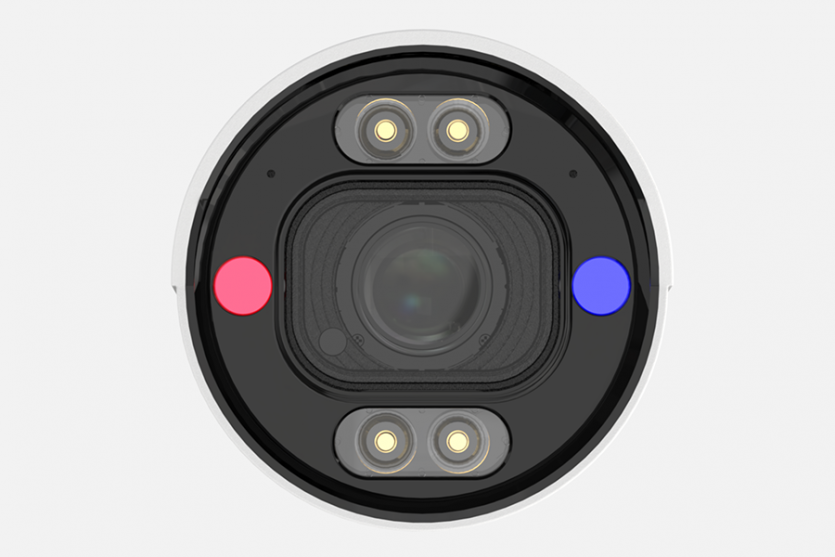

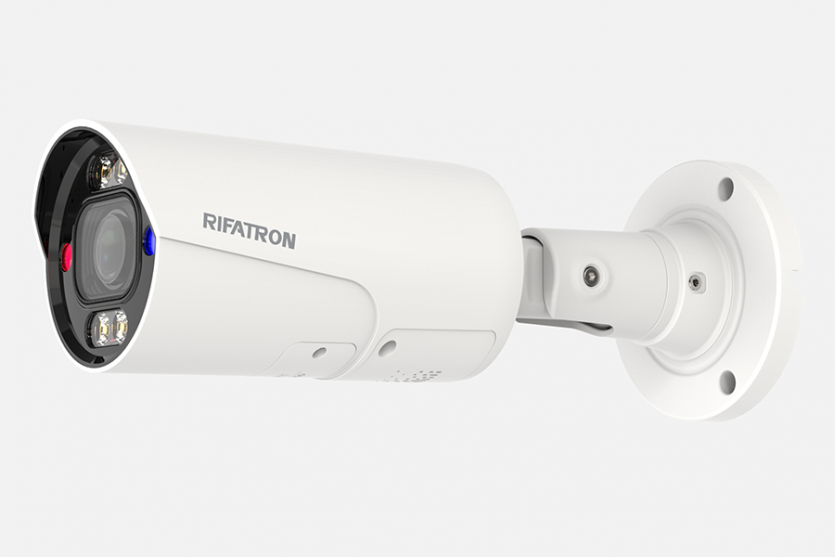

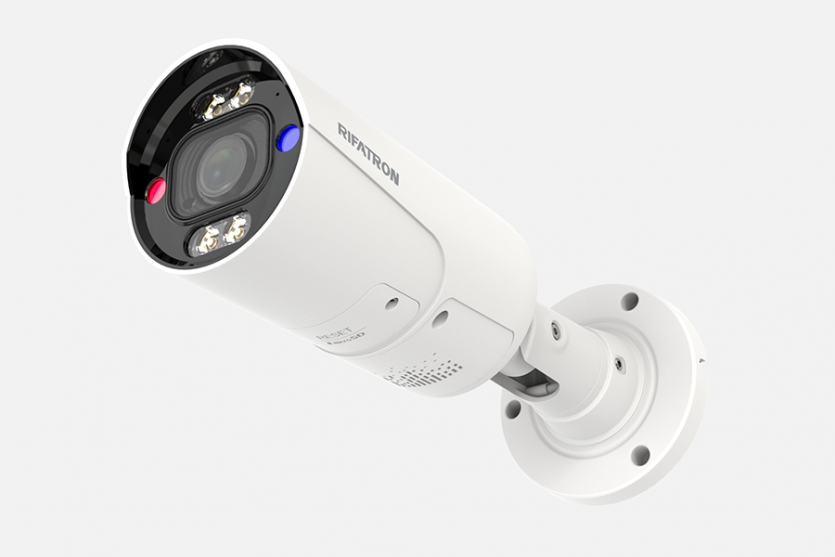

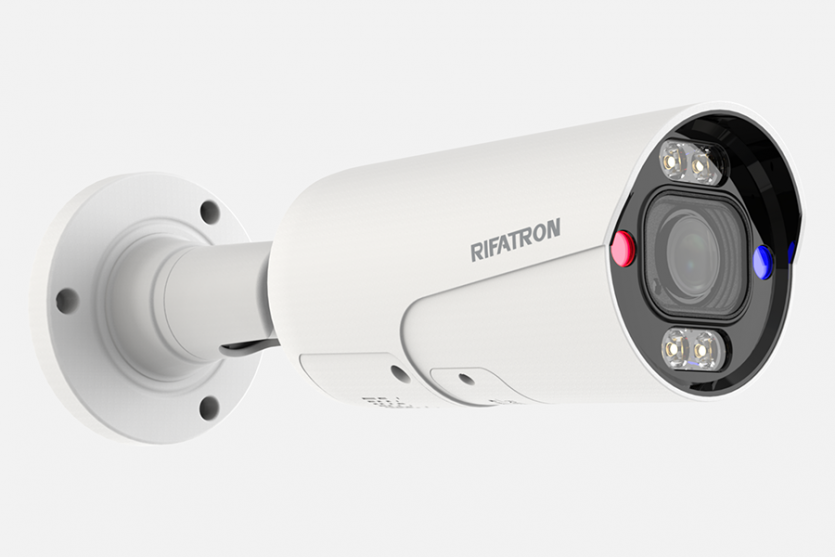

RBO1-NMF8-NS
■ 제품 시리즈 : O 시리즈
■ 카테고리 : Full Color
■ 외관형태 : Bullet
■ 해상도 : 8MP
■ 렌즈 형태 : Motorized
| Camera | ||
| Image Sensor | 1/2.8" Progressice Scan CMOS | |
| Effective Pixels | 8MP 3840(H)×2160(V) | |
| Min. Illumination | Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON | |
| Shutter Speed | 1/5s to 1/20,000s | |
| Lens | ||
| Type / Focal Length | Motorized / 2.8mm - 12mm | |
| Filed of View(FOV) | H: 107° to 34°, V: 56° to 19°, D: 129° to 39° | |
| Aperture | F1.2 | |
| Illuminator | ||
| Light Type | IR LED, Warm Light, Red/Blue Light | |
| Range(IR/WARM) | Up to 30m / 25m | |
| Video | ||
| 1st stream | 8MP(3840x2160), 5MP(2592x1944, 3072x1728),
4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960), 720P(1280x720), |
|
| 2nd stream | 720P(1280x720), VGA(640x480), QVGA(320x240) | |
| 3rd stream | VGA(640x480), QVGA(320x240) | |
| Compression | H.265 / H.264 | |
| Video Quality Ajustment | Full Color Mode / Day&Night Mode / Schedule | |
| Bitrate Control | VBR / CBR | |
| Audio | ||
| Sampling Rate | 8k | |
| Compression | G.711ulaw / G.711alaw | |
| Bitrate | 64kbps | |
| Network | ||
| API | ONVIF (Profile S, G, T) | |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP | |
| Security | IP address filter; complicated password; Authenticated username and password | |
| Image | ||
| Day & Night | Yes | |
| WDR | Yes | |
| Image Enhancement | 3D DNR, White Balance | |
| Image Settings | Full Color Mode / Day&Night Mode / Schedule | |
| Interface | ||
| Ethernet | RJ45 (10/100BASE-T) | |
| On-Board Storage | Micro SD slot, up to 256GB | |
| Smart & Event | ||
| Smart features | Face Recognition（FR）
Human&Vehicle Detection（PD&VD）Perimeter
Intrusion Detection（PID） Line Crossing Detection（LCD） Cross Counting（CC）Stationary Object Detection（SOD） Heat Map（HM）Crowd Density Detection（CD）Queue Length Detection（QD） license Plate Detection（LPD）Rare Sound Detection（RSD） |
|
| Events | Off/On (8 Level) | |
| General | ||
| Material | Metal | |
| Power | D12V / POE (IEEE802.3af) | |
| Operating Conditions | -35～+60°C / less than 95% RH | |
| Ingress Protection / IK code | IP67 | |
RBO1-NMF8-NS 8MP_Full color.pdf (229.9K)
