IP카메라

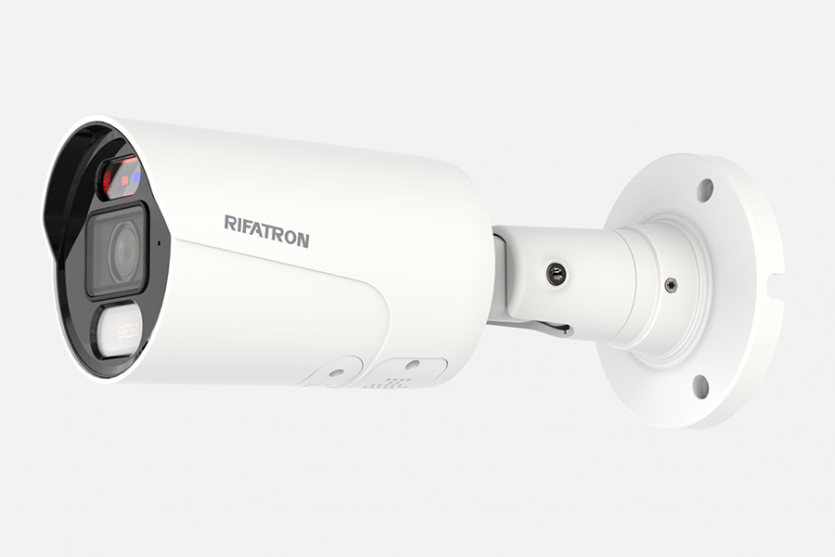

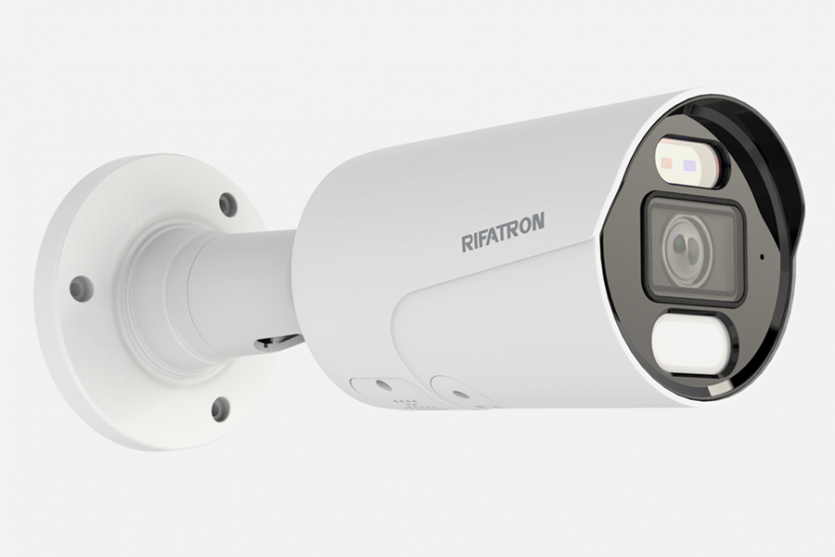

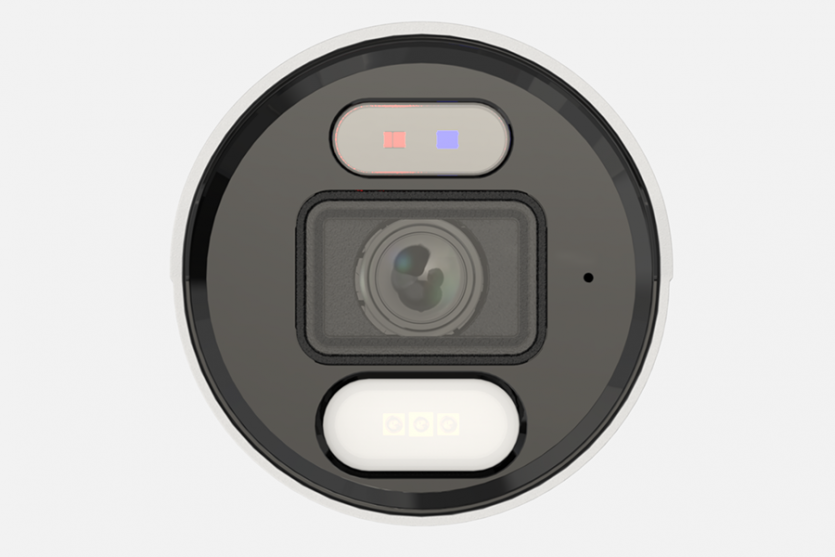

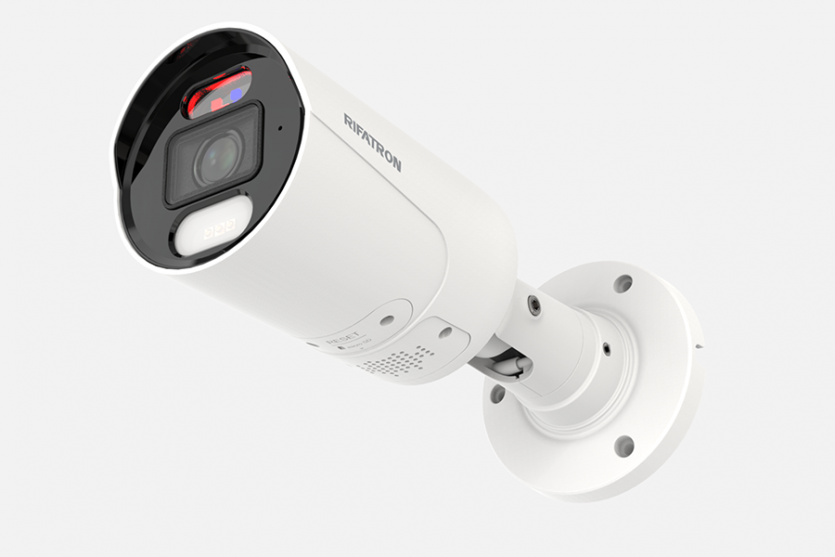

RLO1-NFF8-NS

■ 제품 시리즈 : O 시리즈


■ 카테고리 : Full Color


■ 외관형태 : Bullet


■ 해상도 : 8MP


■ 렌즈 형태 : Fixed

Camera
Image Sensor 1/2.8" Progressice Scan CMOS
Effective Pixels 8MP 3840(H)×2160(V)
Min. Illumination Color 0.007lux @ F1.0(AGC ON) ;   B/W 0 lux @ IR ON
Shutter Speed 1/5s to 1/20,000s
Lens
Type / Focal Length Fixed / 2.8mm
Filed of View(FOV)  H: 106°, V: 56°, D: 126°
Aperture F1.0
Illuminator
Light Type IR LED, Warm Light, Red/Blue Light
Range(IR/WARM) Up to 25m / 20m
Video
1st stream 8MP(3840x2160), 5MP(2592x1944, 3072x1728), 4MP(2592x1520), 3MP(2304x1296),
1080P(1920x1080), 960P(1280*960), 720P(1280x720),
2nd stream 720P(1280x720), VGA(640x480), QVGA(320x240)
3rd stream VGA(640x480), QVGA(320x240)
Compression  H.265 / H.264
Video Quality Ajustment  Full Color Mode / Day&Night Mode / Schedule
Bitrate Control VBR / CBR
Audio
Sampling Rate 8k
Compression G.711ulaw / G.711alaw
Bitrate 64kbps
Network
API ONVIF (Profile S, G, T)
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Security IP address filter; complicated password; Authenticated username and password
Day & Night Yes
WDR Yes
Image Enhancement 3D DNR, White Balance
Image Settings Full Color Mode / Day&Night Mode / Schedule
Interface
Ethernet RJ45 (10/100BASE-T)
On-Board Storage Micro SD slot, up to 256GB
Smart & Event
Smart features Face RecognitionFR Human&Vehicle DetectionPD&VDPerimeter Intrusion DetectionPID
Line Crossing Detection
LCD Cross CountingCCStationary Object DetectionSOD
Heat Map
HMCrowd Density DetectionCDQueue Length DetectionQD
license Plate Detection
LPDRare Sound DetectionRSD
Events Off/On (8 Level)
General
Material Metal
Power  D12V / POE (IEEE802.3af)
Operating Conditions -35+60°C / less than  95% RH
Ingress Protection / IK code IP67
RLO1-NFF8-NS 8MP_Full color.pdf (228.7K)
