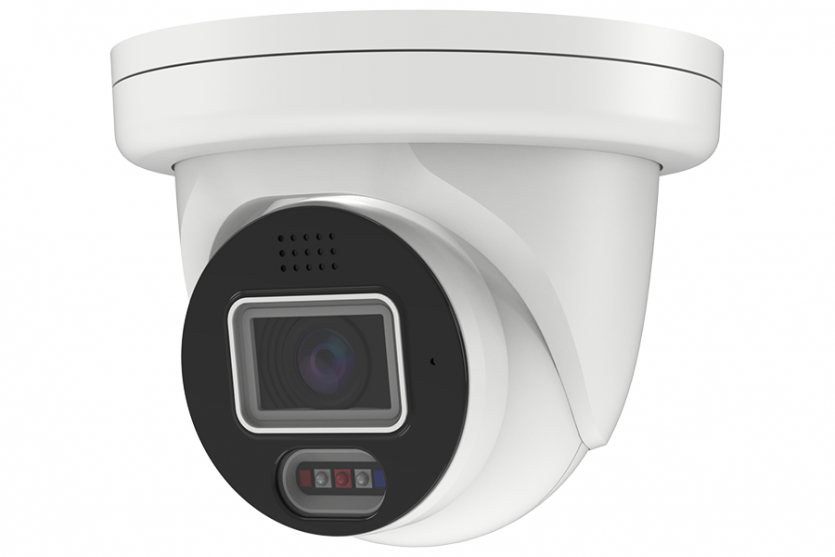

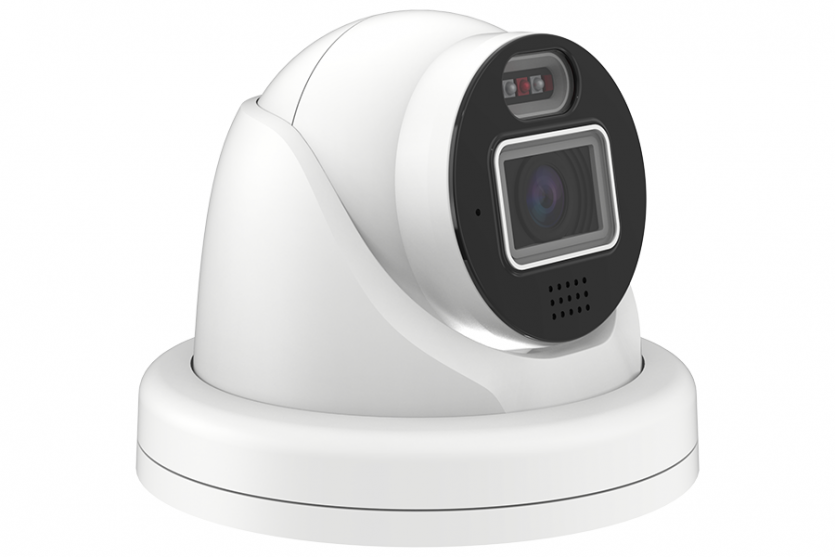

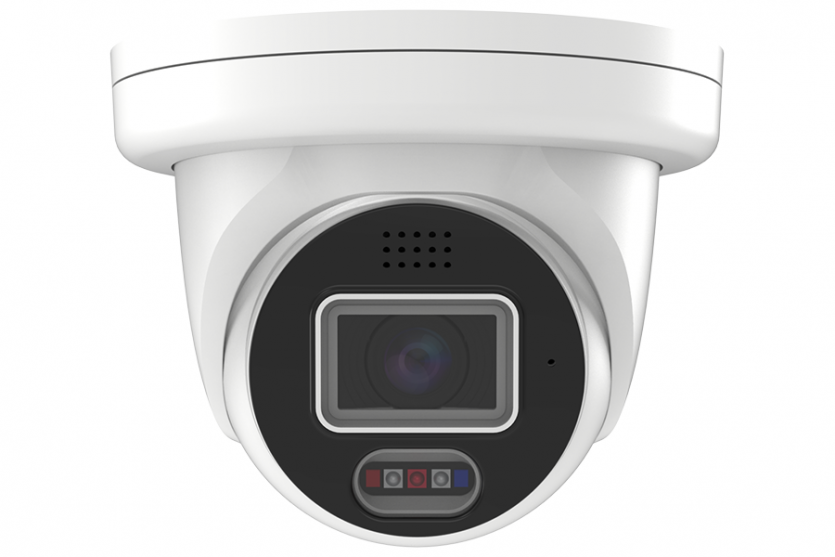

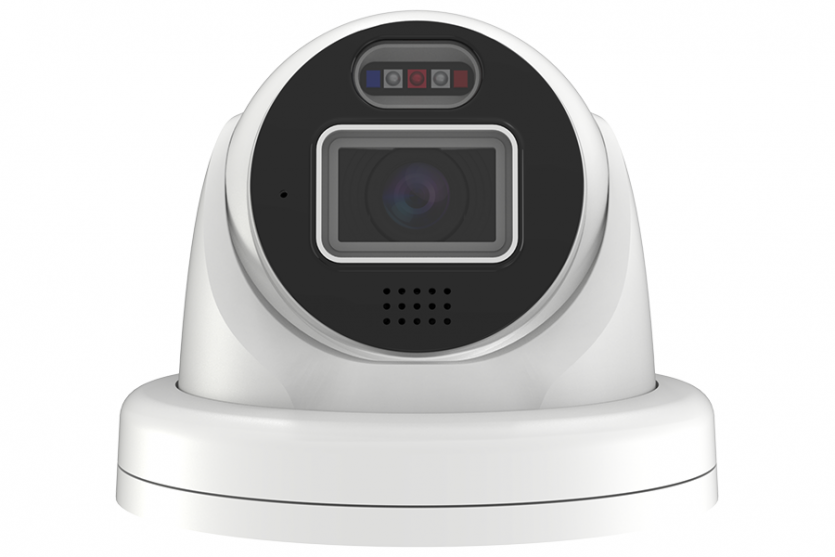

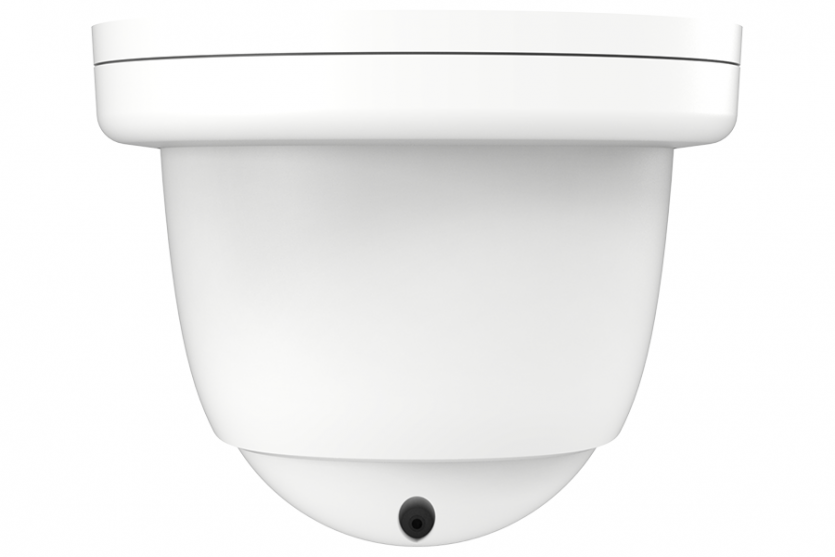

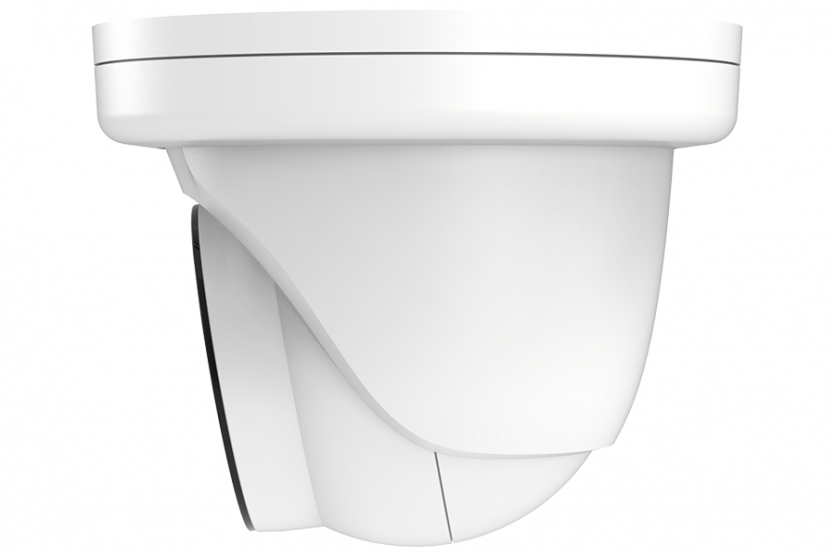

TLO1-NFU4-XO

■ 제품 시리즈 : O 시리즈


■ 카테고리 : Ultra Low Light


■ 외관형태 : Turret


■ 해상도 : 4MP


■ 렌즈 형태 : Fixed

Camera
Image Sensor 1/1.8" Progressice Scan CMOS
Effective Pixels 4MP  (2688x1520)
Min. Illumination Color: 0.0005Lux @ (F1.0, AGC ON), B/W 0 Lux with IR on
Shutter Speed 1/5s to 1/20,000s
Lens
Type / Focal Length Fixed / 3.6mm
Filed of View(FOV)  H: 96°, V: 51°, D: 115°
Aperture F1.0
Illuminator
Light Type Warm Light, Red/Blue Light
Range(IR/WARM) None / Up to 20m
Video
1st stream 4MP(2688x1520), 3MP(2304x1296), 1080P(1920x1080)
2nd stream 1080P(1920x1080), 720P(1280x720), VGA(640x480)
3rd stream VGA(640x480), QVGA(320x240)
Compression  H.265 / H.264
Video Quality Ajustment Full Color Mode / Day&Night Mode / Schedule
Bitrate Control VBR / CBR
Audio
Sampling Rate 8k
Compression G.711ulaw / G.711alaw
Bitrate 64kbps
Network
API ONVIF (Profile S, G, T)
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Security IP address filter;  complicated password;  Authenticated username and password
Day & Night Yes
WDR Yes
Image Enhancement 3D DNR, White Balance
Image Settings Full Color Mode
Interface
Ethernet RJ45 (10/100BASE-T)
On-Board Storage Micro SD slot, up to 256GB
Smart & Event
Smart features Face Recognition, Pedestrian & Vehicle , Perimeter Intrusion , Line Crossing ,  Object Detection,
Crossing Counting, Heat Map, Crowd Density , Queue Length , License Plate Rare Sound
Intrusion
Region EntranceRegion Exiting
Events Off/On (8 Level)
General
Material Metal
Power  D12V / POE (IEEE802.3af)
Operating Conditions -35+60°C / less than  90% RH
Ingress Protection / IK code IP67
TLO1-NFU4-XO 4MP_Ultra Low Light.pdf (231.4K)
