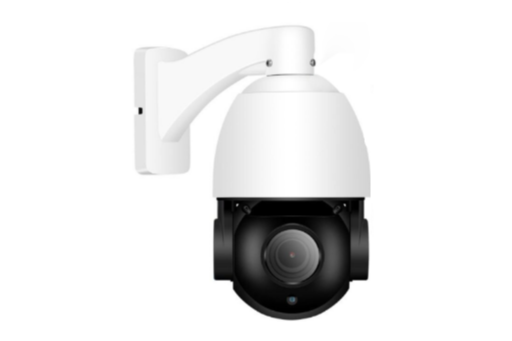

SMY1-NPD5-MS
■ 제품 시리즈 : Y 시리즈
■ 카테고리 : 특수카메라
■ 외관형태 : -
■ 해상도 : 5MP
■ 렌즈 형태 : Fixed
| Camera | ||
| Image Sensor | 1/2.8" Sony IMX335 CMOS | |
| Effective Pixels | 5MP (2592 x 1944) | |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
| Shutter Speed | 1/25s ~ 1/100000s | |
| Lens | ||
| Type / Focal Length | PTZ / 4.7 ~ 94mm (20x) | |
| Aperture | F1.2 | |
| Illuminator | ||
| Light Type | IR | |
| Range(IR/WARM) | Up to 80m | |
| Video | ||
| 1st stream | 25fps (2592x1944), 30fps (2688x1520, 1920x1080, 1280x720) | |
| 2nd stream | 25fps (640x480, 640x360) | |
| 3rd stream | N/A | |
| Compression | H.265 / H.264 | |
| Video Quality Ajustment | 512Kbps ~ 8Mbps | |
| Bitrate Control | CBR / VBR | |
| Audio | ||
| Compression | G.711-u / G.711-a/AAC | |
| Network | ||
| API | ONVIF (Profile S, T) | |
| Protocols | HTTP(S) / RTSP / RTMP / FTP / NFS / SMTP / DHCP / NTP, etc. | |
| Security | User authentication, video data encryption | |
| Image | ||
| Day & Night | Auto / Color / (B/W) / Timing | |
| WDR | Digital WDR | |
| Image Enhancement | AGC / BLC / HLC / 2D, 3D DNR | |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance | |
| Interface | ||
| Ethernet | 1-RJ45, 10M / 100Mbps | |
| On-Board Storage | N/A | |
| Smart & Event | ||
| Smart features | Human auto tracking, Human body detection, Vehicle detection | |
| Events | Motion Detection,Privacy Mask,Flip,OSD overlay | |
| General | ||
| Material | Metal | |
| Power | 12 VDC ± 10% | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Ingress Protection / IK code | IP66 | |
SMY1-NPD5-MS PTZ.pdf (232.1K)
