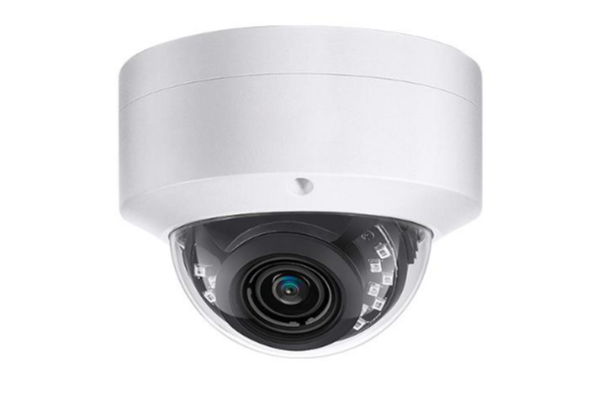

DMY1-NVD5-MS

■ 제품 시리즈 : Y 시리즈


■ 카테고리 : Day & Night


■ 외관형태 : Dome


■ 해상도 : 5MP


■ 렌즈형태 : Varifocal

Camera
Image Sensor 1/2.8" Sony IMX335 CMOS
Effective Pixels 5MP (2592 x 1944)
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Shutter Speed 1/25s ~ 1/100000s
Lens
Type / Focal Length Varifocal / 2.8 ~ 12mm
Aperture F1.2
Illuminator
Light Type IR
Range(IR/WARM) Up to 30m
Video
1st stream 25fps (2592x1944),  30fps (2688x1520, 1920x1080, 1280x720)
2nd stream 30fps (640x480, 640x360)
3rd stream N/A
Compression  H.265 / H.264
Video Quality Ajustment 512Kbps ~ 12Mbps
Bitrate Control CBR / VBR
Audio
Compression G.711-u / G.711-a/AAC
Network
API ONVIF (Profile S, T)
Protocols HTTP(S) / RTSP / RTMP / FTP / NFS / SMTP / DHCP / NTP, etc.
Security User authentication, video data encryption
Day & Night Auto / Color / (B/W) / Timing
WDR Digital WDR
Image Enhancement AGC / BLC / HLC / 2D, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, white balance
Interface
Ethernet 1-RJ45, 10M / 100Mbps
On-Board Storage N/A
Smart & Event
Smart features N/A
Events Motion Detection,Privacy Mask,Flip,OSD overlay
General
Material Metal
Power  12 VDC ± 10%
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F)
Ingress Protection / IK code IP66
DMY1-NVD5-MS 5MP.pdf (237.8K)
