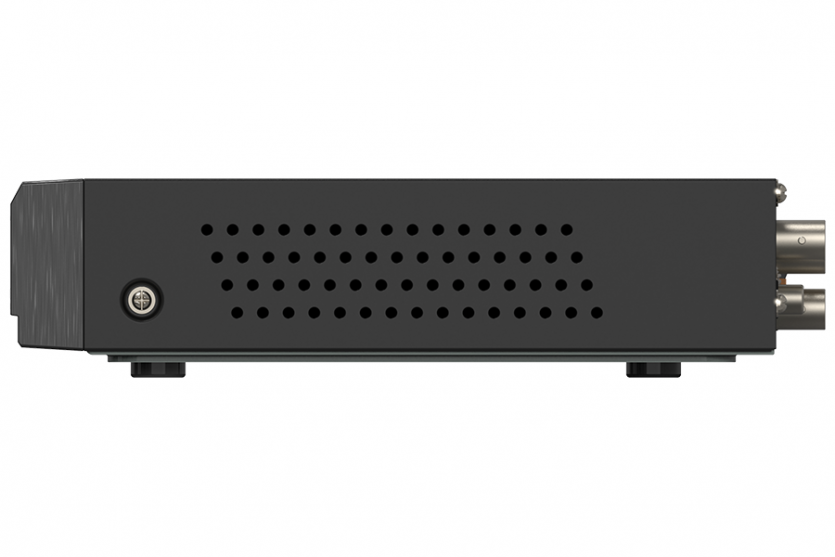

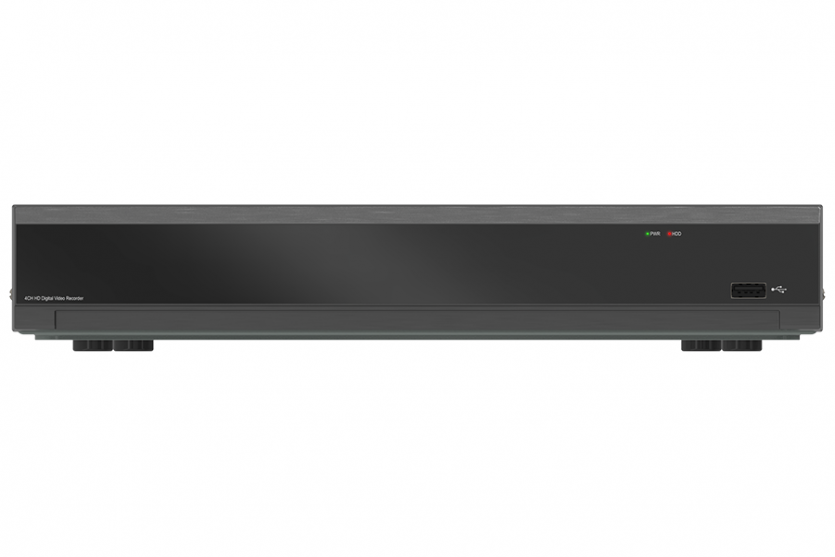

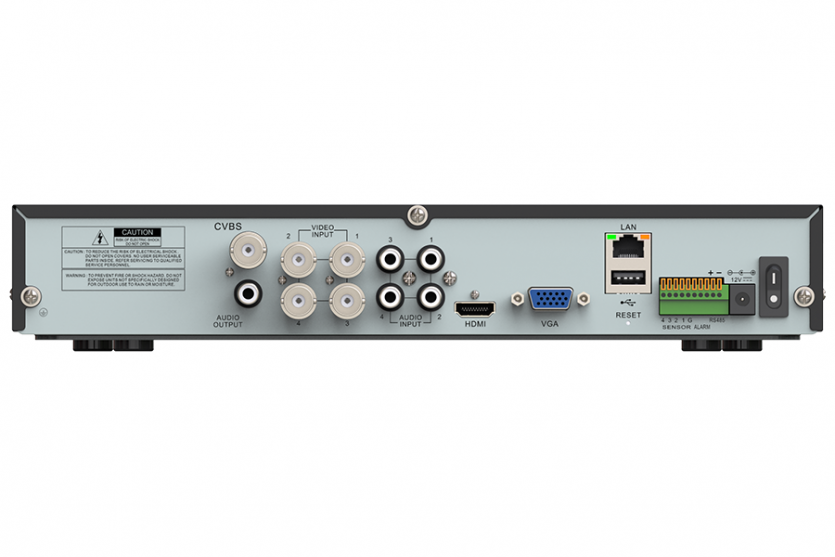

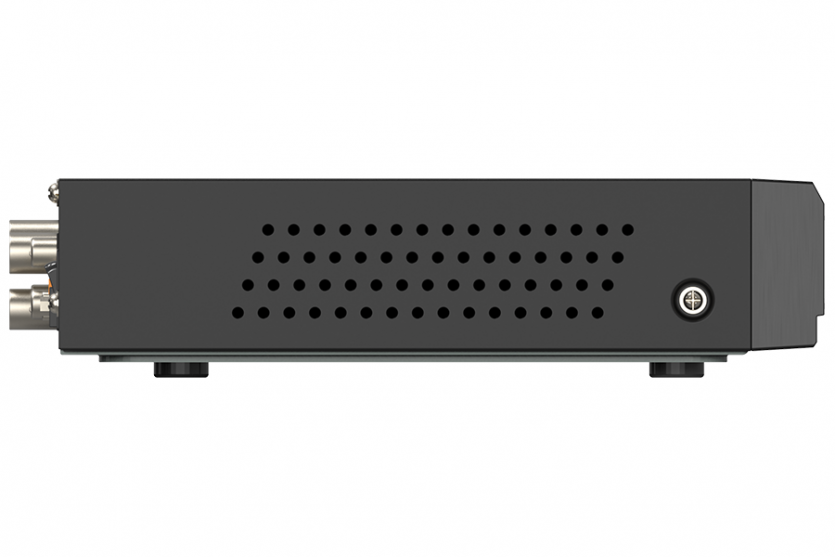

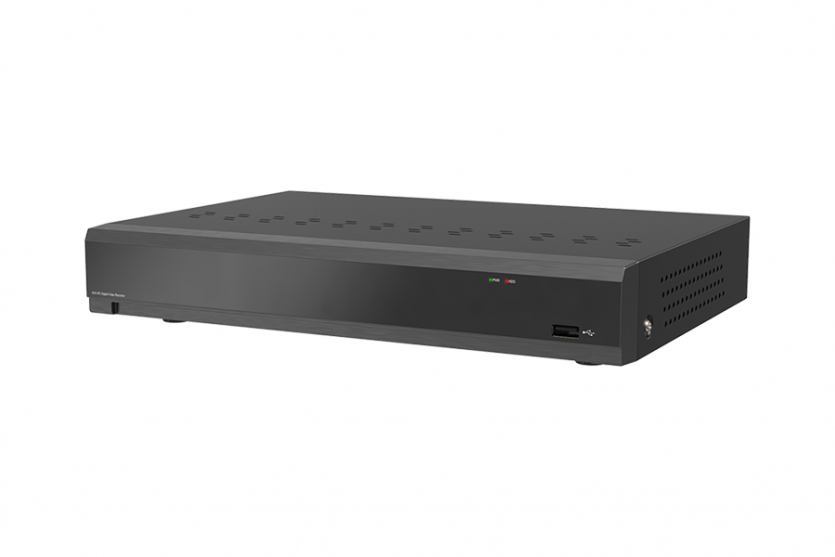

ET20-504S4-323A

■ 제품 시리즈 : T 시리즈


■ 채널 : 4채널


■ 외형 : Kute


■ HDD Bay : 1개


■ Rec. performance : 2MP@Full



Video
Input 4 BNC
Input Resolution 8MP, 5MP, 4MP, 3MP, 2MP, 960H
Output 1 HDMI, 1 VGA, 1 CVBS
Output Resolution 4K, FHD, SXGA
Recording
Speed 2MP : 30fps/ch
3MP, 4MP : 15fps/ch
5MP: 10fps
8MP: 7fps
Resolution 8MP, 5MP, 4MP, 3MP, 2MP, 960H
Compression H.265, H.264
Audio
Input 4 RCA
Output 1 HDMI, 1 RCA
Interface
Senser In / Out 4 / 1 - NC / NO
USB 2 x USB 2.0
PTZ RS485 - Terminal Block
Network
Interface Ethernet 10/100
Compression H.265, H.264
Resolution Max. 4MP
System
OS Embedded Linux (Built-in Flash Memory)
Pre / Post-Alarm 5sec / 5sec~5min
Recording Mode Continuous, Event, Schedule
Data Search Smart, Panorama, Calendar, Multi Day / Time, Event, Go to Time
Backup Interface USB, Network
Backup Type Video(RMS, AVI), Capture(JPEG), Log List, Setup Data
Alarm Action Buzzer, PTZ Preset, E-mail, Relay, Spot, Event Popup, Callback, Push
User 15 Users (Admin, User1 ~ User14)
Network Viewer Netus, VMS, Web Viewer, Mac Viewer, NETUS-Eyes(iOS, Android)
ONVIF ONVIF Profile T
Storage
Primary / Enternal 1 HDD
General
Size (W x D x H) 300 x 53 x 227 mm
Temp / Humidity 5 ~ 40 / 10 ~ 80%
Power Supply 12V / 2A
Power
Consumption
24 Watts
ET20-504S4-323A_사양서.pdf (306.0K)
