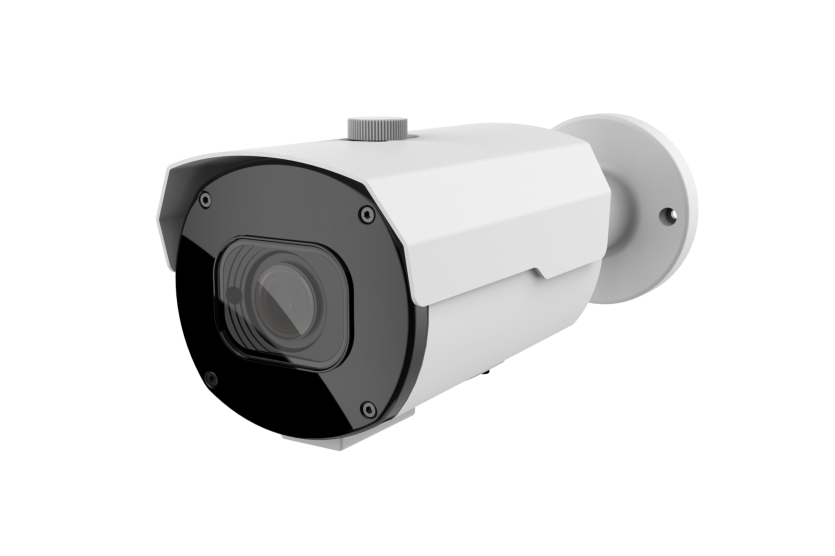

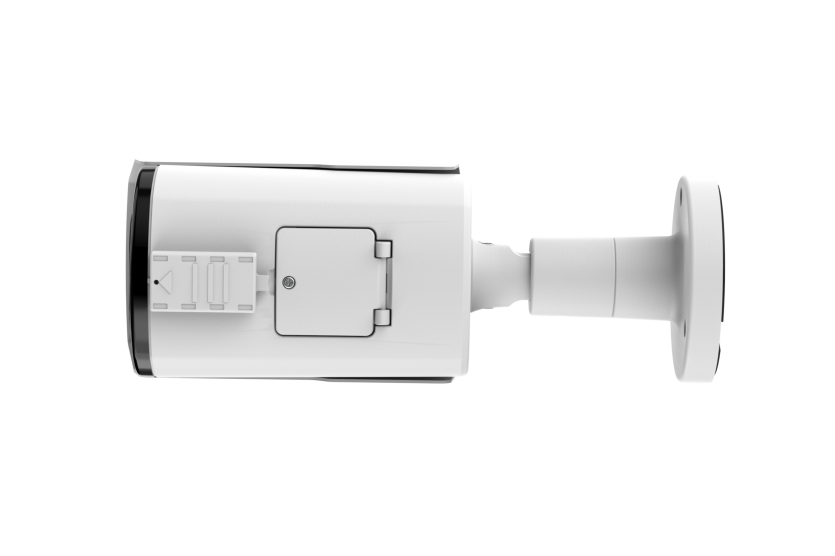

BMT2-AMD8-TM

■ 제품 시리즈 : T 시리즈


■ 카테고리 : Day&Night


■ 외관형태 : Bullet


■ 해상도 : 8MP


■ 렌즈형태 : Motorized

Camera
Image Sensor 1/2.7" Progressice Scan CMOS
Effective Pixels 8MP (3840 × 2160)
Min. Illumination 0.06Lux@F1.6(AGC ON), B/W 0 Lux IR on
Electronic Shutter Auto
Lens
Type / Focal Length Varifocal / 2.8-12mm
Filed of View(FOV) H:106.6°-34.6°/  V:54.4°-19.5°/  D:132.9°-39.8°
Aperture F1.8-3.3
Illuminator
Light Type IR
Range(IR/WARM) Up to 35m
Video & Event
Max. Framerate 5MP: AHD/TVI: 5MP@20fps
4MP: AHD/CVI/TVI:P@25fps N@30fps
2MP: AHD/CVI/TVI:P@25fps N@30fps
CVBS: 960H
Day/Night  Ext / Color / B/W
White Balance ATW
Image Enhancement 2D DNR
Audio Audio Over Coaxial / 7M
General
UTC ACP(AHD Coax Protocol)
Power Supply DC 12V
Power Consumption  IR OFF ≤2W,IR ON ≤8W
Operating Temp. -30 °C to 55 °C
Ingress Protection / IK code IP66
BMT2-AMD8-TM 8MP.pdf (218.3K)
